Grandtech Intl Ent Corp.

Mobile Computer

CK3R
Mobile Computer

  • Integrated Scanner Options:
    • EA31 high-performance motion-tolerant 2D imager
    • Capable of scanning all common 1D and 2D barcodes
  • Interface:
    • USB-Full speed 2.0 OTG
    • USB-Full speed 2.0 Client
  • Memory and Storage:
    • Memory: 256MB RAM
    • ROM: 512MB
  • Display:
    • 8.9cm Transmissive QVGA
    • 240x320 pixels
    • High-durability touchscreen
    • LED backlight
  • Operating System:
    • Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology with Honeywell HTML5 Browser
  • Keypad Options:
    • Numeric with function keys
    • Alphanumeric
  • Dimension:
    • 21.6x8.3x2.8 cm
  • Accessories:
    • Supports most CK3 mobile computer ging and docking accessories as well as FlexDock modular docking system, vehicle dock and holder, snap-on adaptors and removable scan handle.
  CK3X
Mobile Computer

  • Integrated Scanner Options
    • EA30 High-Performance Motion-Tolerant 2D Imager: Capable of scanning all common 1D and 2D barcodes
    • EX25 Near/Far 2D Imager: Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m
  • Interface
    • ​USB-Full speed 2.0 OTG
    • USB-Full speed 2.0 Client
  • RFID Support
    • Ready to accommodate field-attachable RFID reader handle via wired (USB) or Bluetooth, enabling you to upgrade to RFID in the future without replacing the whole device.
  • Keypad Options
    • ​Numeric with function keys
    • Alphanumeric
  • Operating System
    • Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology with Honeywell HTML5 Browser.
  • Memory and Storage
    • Memory: 256MB RAM
    • ROM: 1GB Flash customer-accessible micro-SD slot for removable memory cards up to 32 GB
  • Display
    • 8.9cm Transmissive QVGA
    • 240x320 pixels
    • High-durability touchscreen
    • LED Backlight
  • Physical and Environmental
    • LxWxD: 21.6x8.3x3.6
    • Weight: 499g
  • Accessories
    • Supports most CK3 ging and docking accessories as well as FlexDock modular docking system, vehicle dock and holder, snap-on adaptors and removable scan handle.
  CK75
Ultra-Rugged Mobile Computer

  • Integrated Scanner
    • EX25 Near/Far High-Performance 2D Imager: Capable of scanning 1D and 2D barcodes from 15.2 cm to 16.2 m (6 in to 50 ft)
    • N5603ER High-Performance 2D Imager: Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil; standard UPC codes up to 53 cm (21 in)
  • Operating System
    • Microsoft® Windows Embedded Handheld 6.5 Android 6.x.x Marshmallow with GMS
  • Software
    • WINDOWS EMBEDDED HANDHELD 6.5
  • Microprocessor
    • Texas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture
  • Memory and Storage
    • RAM: 2GB RAM
    • ROM: 16GB Flash
    • Storage Expansion: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
  • Display
    • 8.9cm Transmissive VGA
    • 480x640 pixels
    • High-durability touchscreen
    • Hardened Corning® Gorilla® Glass display for superior durability
    • LED backlight
  • Interface
    • USB – Full Speed 2.0 Host, USB – Full Speed 2.0 Client
  • Keypad Options
    • Numeric with function keys
    • Alphanumeric
  • Physical Characteristics
    • Dimensions with Battery (L x W x D): 23.7 cm x 8.0 cm x 5.0 cm (9.33 in x 3.16 in x 1.98 in)
    • Weight: 584g (20.6 oz) with battery
  • Accessories
    • FlexDock modular docking system, vehicle dock and holder, snap-on adapters, removable scan handle and magnetic stripe reader
  CN51
Mobile Computer

  • Integrated Scanner Options
    • EA30 High-Performance Motion-Tolerant 2D Imager: (up to 500 in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils.
    • EA31 High-Performance Motion-Tolerant 2D Imager: (up to 400 in/s) white LED illumination. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils.
  • Operating System
    • Microsoft Windows Embedded Handheld 6.5 or Android 6.0 Marshmallow with GMS
  • Microprocessor
    • Texas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture
  • Memory & Storage
    • Memory: 1 GB RAM
    • ROM: 16 GB Flash customer-accessible microSD slot for removable memory cards up to 32 GB
  • Display
    • 101.6 mm (4.0 in), 480 x 800 pixel (WVGA) TFT-LCD display
    • LCD supports 24 bpp color depth
    • LED backlight
    • Ambient light sensor
    • Resistive multi-touch touch panel
  • Camera
    • ​5-megapixel auto focus color camera with LED flash
  • Keypad
    • ​27-key numeric or 43-key QWERTY with backlit keypad
  • Standard Communications
    • USB – High Speed 2.0 Host
    • USB – High Speed 2.0 Client
  • Dimensions with Battery (L x W x D): 164 mm x 74 mm x 28 mm (base of unit) or 32 mm (top of unit) (6.45 in x 2.93 in x 1.09 in or 1.26 in)
  • Weight with Battery: 350 g (12.3 oz)
  • Accessories
    • Supports all CN50 ging and docking accessories as well as FlexDock modular docking system, vehicle dock, vehicle holder, snap-on adaptors, removable scan handle, DEX adapter and magnetic stripe reader.

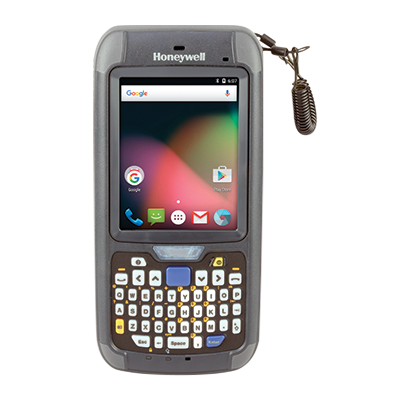

  CN75
Ultra-Rugged Mobile Computer

  • Integrated Scanner: ​EA30 High-Performance Motion-Tolerant 2D Imager: (up to 500 in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils.
  • Integrated Camera: 5-megapixel auto-focus color camera with LED flash
  • Keypad Option: Numeric / QWERTY
  • Operating System: Microsoft® Windows Embedded Handheld 6.5 or Android 6.0 Marshmallow with GMS
  • Multi-engine Processor Architecture: Texas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture
  • Memory
    • RAM: 2 GB
    • ROM: 16 GB Flash
  • Storage Expansion: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
  • Display
    • 8.9 cm (3.5 in) Transmissive VGA
    • 480 x 640 pixels
    • High-durability touch screen
    • Hardened Corning® Gorilla® Glass display for superior durability
    • LED backlight
  • Interface
    • USB – Full Speed 2.0 Host
    • USB – Full Speed 2.0 Client
  • Dimensions with Battery: 16.9 cm x 8.0 cm x 3.4 cm
  • Weight: 450 g (15.9 oz) with battery
  • Accessories
    • FlexDock modular docking system, vehicle dock, vehicle holder, snap-on adaptors, removable scan handle, magnetic stripe reader, 6822 full-page printer and PW50 workboard printer.
  CN75e
Ultra-Rugged Mobile Computer

  • Integrated Scanner: ​EA30 High-Performance Motion-Tolerant 2D Imager: (up to 500 in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils.
  • Integrated Camera: 5-megapixel auto-focus color camera with LED flash
  • Keypad Option: Large Numeric Keypad / QWERTY
  • Operating System: Microsoft® Windows Embedded Handheld 6.5 or Android 6.0 Marshmallow with GMS
  • Multi-engine Processor Architecture: Texas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture
  • Memory
    • RAM: 2 GB
    • ROM: 16 GB Flash
  • Storage Expansion: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
  • Display
    • 8.9 cm (3.5 in) Transmissive VGA
    • 480 x 640 pixels
    • High-durability touch screen
    • Hardened Corning® Gorilla® Glass display for superior durability
    • LED backlight
  • Interface
    • USB – Full Speed 2.0 Host
    • USB – Full Speed 2.0 Client
  • Dimensions with Battery: 19.5 cm x 8.0 cm x 3.4 cm
  • Weight: 491 g (17.3 oz) with battery
  • Accessories: FlexDock modular docking system, vehicle dock, vehicle holder, snap-on adaptors, removable scan handle, magnetic stripe reader, 6822 full-page printer and PW50 workboard printer.
  Dolphin 60s
ScanPhone Mobile Computer

  • Decode Capabilities: Capable of decoding 1D and 2D barcode symbologies
  • Processor: TI AM3715 CortexA8 800 MHz
  • Operating System: Microsoft® Windows® Embedded Handheld 6.5
  • Memory: 256 MB RAM x 512 MB FLASH
  • Display: 7.1cm (2.8”) color LCD QVGA (240 x 320)
  • Touch panel: 4-wire resistive touch panel and support for finger touch and stylus
  • Keypad: Standard keyboards: 46-key QWERTY or 30-key Numeric, dedicated scan key, volume up and down keys, side scan key, hard-reset key
  • I/O Ports: I/O connection(USB2.0,RS232,DC ging), Micro USB 2.0, 3.5mm headphone/mic combo jack
  • Camera: 5.0 mega pixel camera with autofocus and flash
  • Storage expansion: User accessible microSD slot (SDHC compatible).
  • Development Environment: Honeywell SDK for Microsoft® Windows® Embedded Handheld 6.5
  • Dimension: 136mm x 66mm x 28.7mm
  • Weight: 246.6g (8.7oz)

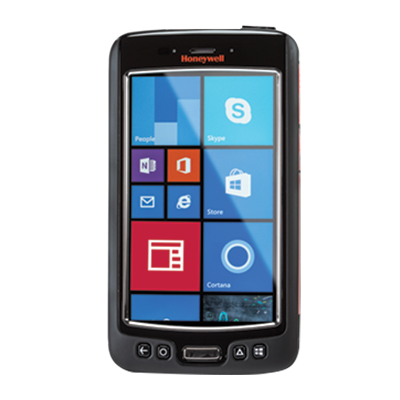

  Dolphin 75e
Handheld Mobile Computer

  • Decode Capabilities: Dedicated imager capable of decoding standard 1D and 2D barcode symbologies.
  • Development Environment: Honeywell SDKs for Android and Windows
  • Application Software: Honeywell Power Tools and Demos
  • Processor: 2.26 GHz Qualcomm Snapdragon 801 quad-core
  • Operating System: Windows 10 IoT Mobile Enterprise, Android 6.0 Marshmallow
  • Memory: 2 GB RAM, 16 GB Flash
  • Display: 109.2 mm (4.3 in) WVGA (480 x 800), super bright, sunlight viewable
  • Touch Panel: Multi-touch projected capacitive touch, optically bonded for extra durability and better sunlight viewability, works with many off the-shelf gloves and when wet.
  • Keypad:
    • Windows: Dedicated center scan button, back button, home button, volume up and down keys, power button; programmable triangle and circle buttons
    • Android: Programmable scan keys (center, left, right scan key), option to launch a user-selectable app
  • Audio: Speaker, digital microphone with echo and noise cancellation; focus on VoIP quality
  • I/O Ports: Micro USB, 3.5 mm headphone/mic combo jack
  • Camera: 8.0-megapixel camera with autofocus and flash with advanced software features for better image quality
  • Sensors: Accelerometer, ambient light, proximity, gyroscope, compass
  • Storage Expansion: User-accessible microSD slot (SDHC-compliant).
  • Dimensions (L x W x H):
    • Standard Battery: 134 mm x 73 mm x 18 mm
    • Extended Battery: 134 mm x 73 mm x 23.9 mm
  • Weight:
    • Standard Battery: 204 g (7.2 oz)
    • Extended Battery: 244 g (8.6 oz)
Dolphin 99EX
Mobile Computer

  • Texas Instruments® OMAP3715 1.0GHz processor
  • Microsoft® Windows Embedded Handheld 6.5 Professional and Classic Operating System
  • 1GB discrete NAND flash x 256 MB RAM
  • Chemically strengthened 3.7˝ transflective active matrix glass display, VGA (480x640), 333 nits
  • RS-232/USB 2.0/audio out/ging connector, integrated IrDA port with support for SIR mode
  • Reads standard 1D and 2D symbologies
Dolphin 99SE
Mobile Computer

  • Decode Capabilities: Reads standard 1D and 2D symbologies
  • Imager/Scanner: N5600/5603 Standard Range (SR), Extended Range (ER) and High Density (HD) imagers with high-visibility laser or green LED aimer. All imagers have 25° angle and come equipped with Adaptus™ 6.0 Imaging Technology
  • Processor: Texas Instruments OMAP3715 1.0 GHz processor
  • Operating System: Microsoft® Windows® Embedded Handheld 6.5 Professional and Classic
  • Memory: 512 MB RAM x 1 GB Flash
  • Storage Expansion: User-accessible Micro SDHC memory card slot.
  • Display: Chemically strengthened 94 mm (3.7 in) transflective active matrix glass display, VGA (480 x 640), 333 nits
  • Touch Panel: Industrial touch panel with resistive touch and support for finger touch and stylus
  • Keypad: Backlit 55-key alphanumeric, 43-key alpha shifted numeric, 34-key numeric shifted alpha (phone or calculator style), 54-key retail and 43-key warehouse
  • Camera: 3.1-megapixel camera with Automated Camera Control (ACC). Features include automated picture profiles, camera Application Programming Interface (API), cooperational use of camera and imager, and flashlight utility
  • I/O Ports: RS-232/USB 2.0/audio out/ging connector, integrated IrDA port with support for SIR mode
  • Dimensions: 215 mm L x 69 mm W (keypad) x 39 mm (standard battery)/45 mm (extended battery) 8.5 in L x 2.7 in W (keypad) x 1.5 in (standard battery)/1.8 in (extended battery)
  • Weight: Standard Battery: 505 g (17.8 oz); Extended Battery: 581 g (20.5 oz)
Dolphin 99XE
Mobile Computer

  • Decode Capabilities: 1D and 2D symbologies
  • Imager/Scanner: N5600/5603 Standard Range (SR), Extended Range (ER) and High Density (HD) imagers with high-visibility laser or green LED aimer. All imagers have 25° angle and come equipped with Adaptus™ 6.0 Imaging Technology
  • Processor: Texas Instruments OMAP3715 1.0 GHz processor
  • Operating System: Microsoft® Windows® Embedded Handheld 6.5 Professional and Classic
  • Memory: 512 MB RAM x 1 GB Flash
  • Storage Expansion: User-accessible Micro SDHC memory card slot.
  • Display: Chemically strengthened 94 mm (3.7 in) transflective active matrix glass display, VGA (480 x 640), 333 nits
  • Touch Panel: Industrial touch panel with resistive touch and support for finger touch and stylus
  • Keypad: Backlit 55-key alphanumeric, 43-key alpha shifted numeric, 34-key numeric shifted alpha (phone or calculator style), 54-key retail and 43-key warehouse
  • Camera: 3.1-megapixel camera with Automated Camera Control (ACC). Features include automated picture profiles, camera Application Programming Interface (API), cooperational use of camera and imager, and flashlight utility
  • I/O Ports: RS-232/USB 2.0/audio out/ging connector, integrated IrDA port with support for SIR mode
  • Dimensions: 215 mm L x 69 mm W (keypad) x 39 mm (standard battery)/45 mm (extended battery) 8.5 in L x 2.7 in W (keypad) x 1.5 in (standard battery)/1.8 in (extended battery)
  • Weight: Standard Battery: 505 g (17.8 oz); Extended Battery: 581 g (20.5 oz)
  Dolphin CT50
Mobile Computer

  • Decode Capabilities: Honeywell N6600 Slim Imager Engine (1D/2D barcode symbologies) Honeywell SDKs for Android and Windows
  • Processor: 2.26 GHz Qualcomm Snapdragon 801 quad-core
  • Operating System: Windows 10 IoT Mobile Enterprise, Android 6.0 Marshmallow
  • Memory: 2 GB RAM, 16 GB Flash
  • Storage Expansion: User-accessible microSD card up to 32 GB (SDHC/SDIO-compliant)
  • Display: 119.4 mm (4.7 in) in High Definition (1280 x 720) bright color LCD with backlight, outdoor viewable, optically bonded to touch panel
  • Touch Panel: Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with many offthe-shelf gloves.
  • I/O Ports: Custom IO connector
  • Camera: 8.0-megapixel color camera with autofocus and advanced software features for better image quality
  • Sensors: Ambient Light Sensor, Proximity Sensor, Accelerometer, Gyroscope, Magnetometer, Pressure Sensor
  • Dimensions (L x W x H): 160 mm x 82.5 mm x 19 mm
  • Weight: 342 grams (12.1 oz) with battery pack
  ScanPal EDA50
Enterprise Hybrid Device

  • Scan Engine: HI2D Imager
  • Scan Notification: Red/Green light
  • Processor: Qualcomm Snapdragon 410 MSM8916 1.2 GHz quad-core
  • Operating System: Android 7.1.1 with Google Mobile Services
  • Memory: 2 GB RAM, 8 GB Flash
  • Storage Expansion: MicroSDHC (up to 32 GB)
  • Camera: 5.0-megapixel color camera with autofocus and LED flash
  • Display Size: 12.7 cm (5.0 in)
  • Resolution: 1280 x 720 High Definition
  • Dimension: 153.5 mm x 78.9 mm x 18 mm
  • Weight: 270 g (9.52 oz)
  • Accessories: Single Charging Cradle; Hand Strap; Replacement Battery; USB Communication Cable: Micro USB 2.0 (communicates to PC, supports adaptor/USB ging); USB Wall Adaptor: 5V/2A
  ScanPal EDA50k
Enterprise Hybrid Device

  • Scan Engine: HI2D Imager
  • Scan Notification: Red/Green light
  • Processor: Qualcomm Snapdragon 410 MSM8916 1.2 GHz quad-core
  • Operating System: Android 7.1.1 with Google Mobile Services
  • Memory: 2 GB RAM, 8 GB Flash
  • Storage Expansion: MicroSDHC (up to 32 GB)
  • Camera: 5.0-megapixel color camera with autofocus and LED flash
  • Display Size: 12.7 cm (5.0 in)
  • Resolution: 1280 x 720 High Definition
  • Dimension: 153.5 mm x 78.9 mm x 18 mm
  • Weight: 270 g (9.52 oz)
  • Accessories: Single Charging Cradle; Hand Strap; Replacement Battery; USB Communication Cable: Micro USB 2.0 (communicates to PC, supports adaptor/USB ging); USB Wall Adaptor: 5V/2A
  ScanPal EDA70
Enterprise Tablet

  • Decode Capabilities: 1D/2D barcode symbologies
  • Processor: 1.2 GHz Qualcomm MSM8916 quad-core
  • Operating System: Android 7.1 Nougat
  • Memory: 2 GB RAM, 16 GB Flash
  • Display: 7-inch high definition (1280 x 720) bright color LCD with backlight, outdoor viewable, optically bonded to touch panel
  • Touch panel: Rugged, multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use
  • Keypad: On-screen keypad, side scan triggers, volume up/down, power button
  • Audio: Built-in speaker, Bluetooth® wireless headset support
  • I/O Ports: Custom I/O connector
  • Camera: 5.0-megapixel color camera with autofocus
  • Sensors: Ambient light sensor, proximity sensor, accelerometer
  • Storage Expansion: User-accessible microSD card up to 32GB (SDHC/SDIO-compliant)
  • Battery: Li-Ion, 3.8 V, 4000 mAh with integrated battery diagnostics
  • Hours of Operation: 8+ hours
  • Application Software: Honeywell power tools and demos, Honeywell SDKs for Android
